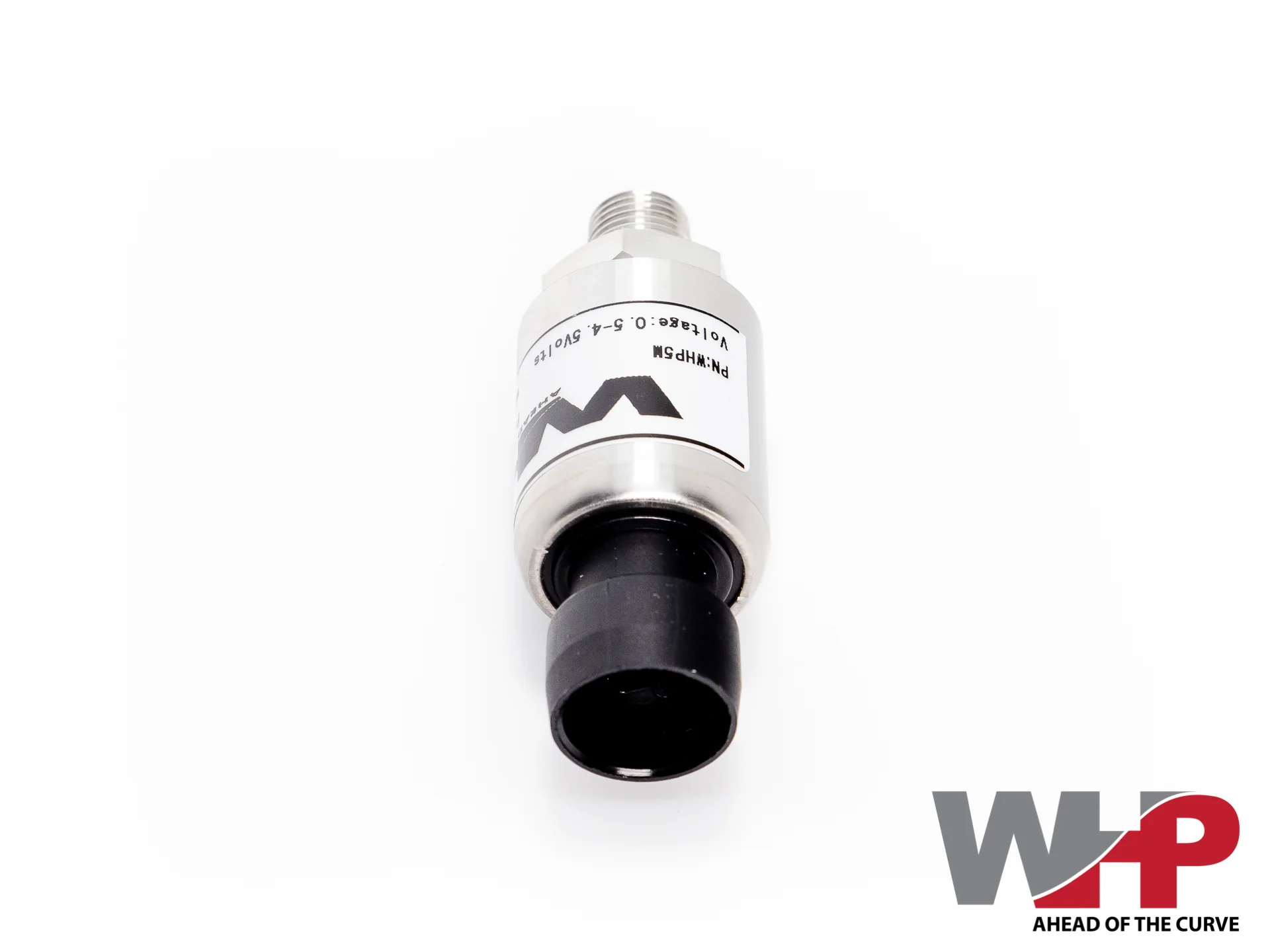

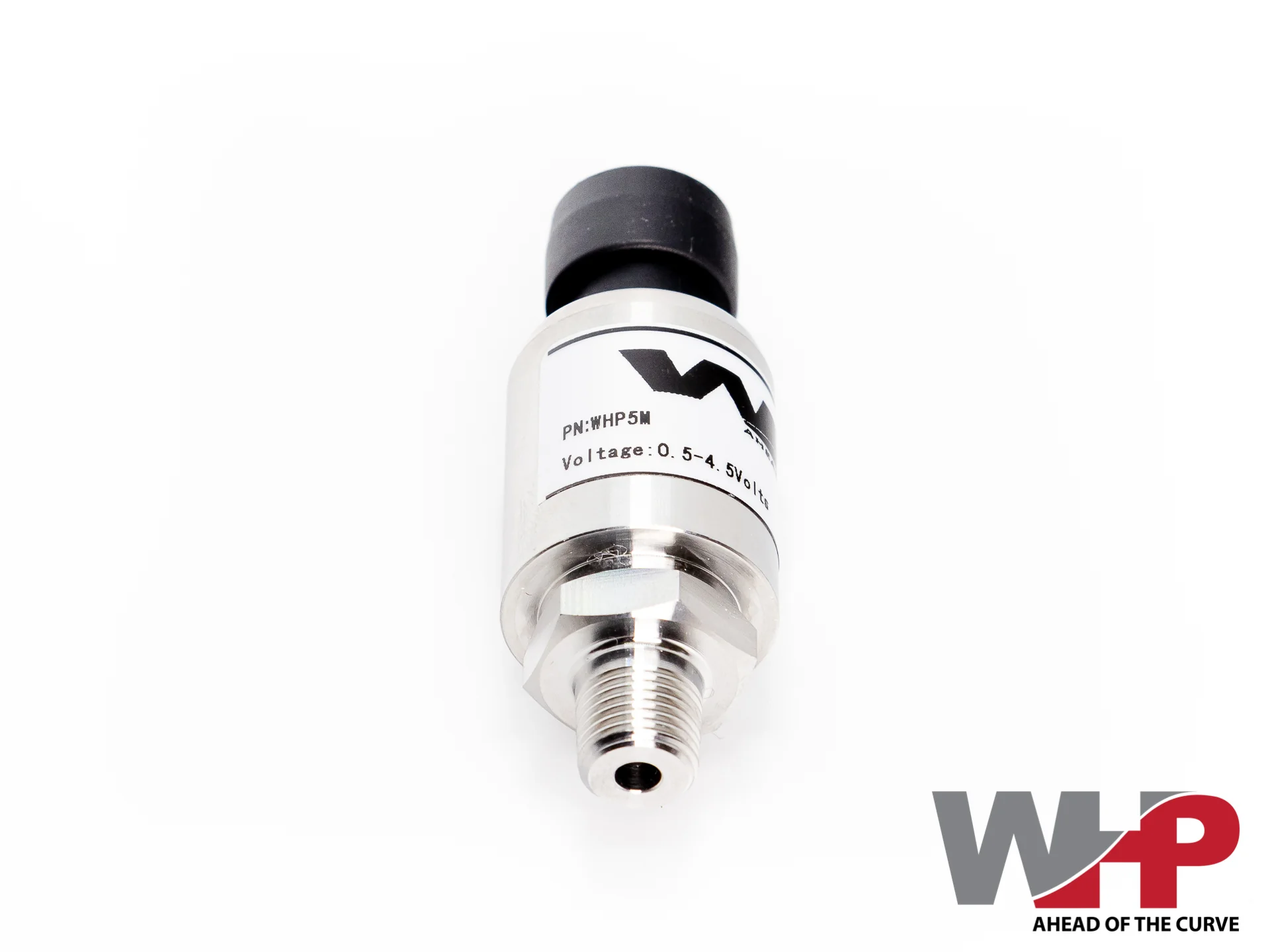

WHP 5 BAR MAP SENSORS are ideally suited for high boost MAP sensor applications, providing resolution up to approximately 58 PSI of boost pressure.

WHP pressure sensors are the perfect companion to any ECU. WHP sensors are built to custom specifications in an ISO9001 Certified facility. The latest developments in sensor technology are used to create an extremely compact sensor, easing installation in cramped engine bays and chassis. All sensors are compensated for temperature over a broad range and accurately measure pressure within .5%. Sensor bodies are crafted from 304 Stainless Steel and feature CNC cut threads and wrench flats for reliable sealing and trouble-free installation. Each sensor is packaged with a Delphi connector kit, installation instructions, and a tube of thread sealing compound.

Part Number: WHP5M

Specifications:
1/8" NPT Threads
Linear pressure range: 0-5 Bar Absolute Pressure (0-72 PSIA)
0.5v=0 bar (0 psia)
4.5v=5 bar (72 psia)

YOUTUBE LINK FOR CONFIGURING SENSORS IN EMU CLIENT
